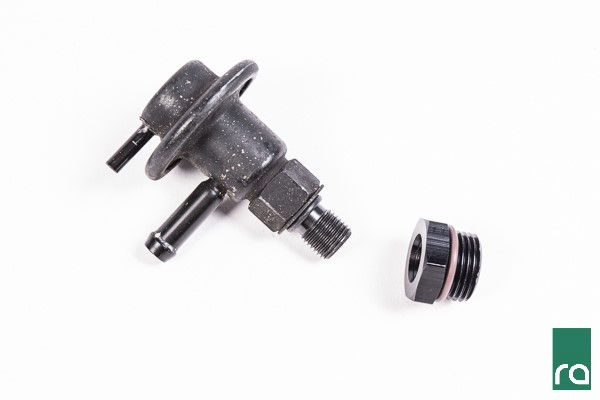

Radium FPR and FPD Adapter Fittings

Part Number: 20-0301
Fitting Threads: 8AN ORB male
FPR Threads: M6x1.0mm
Application:
Toyota 2JZ-GE
Toyota 2JZ-GTE
Toyota 2RZ-FE
Toyota 3RZ-FE
Toyota 4E-FTE
Toyota 4A-GZE
Toyota 4A-GE
Toyota 4A-GELU
Mitsubishi EVOX 4B11T
Saab 9-2X Aero 2.0L
Subaru EJ20 GDA WRX
Mazda MX-5 BP
etc.
Required: Fuel rail must have a 8AN ORB female threaded port.



Part Number: 20-0302
Fitting Threads: 8AN ORB male
FPR Threads: M6x1.0mm
Application:
Mitsubishi EVO VIII
Mitsubishi EVO IX
etc.
Required: Fuel rail must have a 8AN ORB female threaded port.



Part Number: 20-0303
Fitting Threads: 8AN ORB male
FPR Threads: M5x0.8mm
Application:
Nissan RB26DETT
Nissan RB25DET
Nissan SR20DET
Nissan KA24DE
Nissan CA18DET
Saab 9-2X Aero 2.5L
Subaru EJ20 GC8 WRX
Subaru EJ25 GR WRX
Mazda RX-7 13B
etc.
Required: Fuel rail must have a 8AN ORB female threaded port.




Part Number: 20-0460
Fitting Threads: 8AN ORB male
FPR/FPD Threads: M6x1.0mm
Application:
Nissan VQ35DE Fuel Pulse Damper
Nissan VR38DETT Fuel Pulse Damper
Nissan VR38DETT Fuel Pressure Regulator
etc.
Required: Fuel rail must have a 8AN ORB female threaded port.



Part Number: 14-0165
Fitting Threads: 3/8" NPT male
FPR Threads: M5x0.8mm
Application:
Nissan RB26DETT
Nissan RB25DET
Nissan SR20DET
Nissan KA24DE
Nissan CA18DET
Saab 9-2X Aero 2.5L
Subaru EJ20 GC8 WRX
Subaru EJ25 GR WRX
Mazda RX-7 13B
etc.
Required: Fuel rail must have a 3/8" NPT female threaded port. PTFE sealing paste. Each end of the adapter fitting mimics the profile of an 11/16" (18mm) wrench for rotating during installation.



Part Number: 14-0285
Fitting Threads: 8AN ORB male
Application:
Toyota 1JZ-GTE Non VVT-i
Toyota 1JZ-GTE VVT-i
Toyota 3S-GTE
Toyota 1UZ-FE
Mazda RX-7 FC Series 4
etc.
Required: Fuel rail must have a 8AN ORB female threaded port.



Part Number: 20-0210
Fitting Threads: 8AN ORB male. Two piece design that uses 14-0125 and 20-0209.
FPR Threads: M6x1.0mm
Application:
Toyota 2JZ-GE
Toyota 2JZ-GTE
Toyota 2RZ-FE
Toyota 3RZ-FE
Toyota 4E-FTE
Toyota 4A-GZE
Toyota 4A-GE
Toyota 4A-GELU
Mitsubishi EVOX 4B11T
Saab 9-2X Aero 2.0L
Subaru EJ20 GDA WRX
Mazda MX-5 BP
Required: Fuel rail must have a 8AN ORB female threaded port. PTFE sealing paste. Each end of the adapter fitting mimics the profile of an 11/16" (18mm) wrench for rotating during installation.



Part Number: 20-0014
Fitting Threads: 6AN ORB high pressure female ports (in/out). 6AN male male low pressure return port. 1/8" NPT female port.
Application:
Audi 1.8L Turbo
Ford Falcon BA, BF, FG XR6 Turbo
Ford Territory Turbo
FPV F6 Typhoon Turbo
Volkswagen 1.8L Turbo
etc.
Required: Mounts external to the fuel rail. A mounting location is required with hose and hose ends. PTFE sealing paste for 1/8" NPT port.



Part Number: 20-0459
Fitting Threads: 8AN ORB male
Application:
Nissan VQ35HR Fuel Pulse Damper
Nissan VQ37VHR Fuel Pulse Damper
Nissan VQ40DE Fuel Pulse Damper
Nissan VR38DETT Fuel Pulse Damper
etc.
Required: Fuel rail must have a 8AN ORB female threaded port.
